How to use auto soap dispenser station stand?

The auto soap dispenser station stand is a device that automatically dispenses soap by sensing the human body. This device is widely used in hospitals, hotels, hotels, airports, stations, homes and other places because of its beautiful design, healthy and environmentally friendly use, and can effectively avoid secondary cross-infection.

How does an auto soap dispenser station stand work?

How to install the auto soap dispenser station stand?

What are the precautions for the use of auto soap dispenser station stand?

How does an auto soap dispenser station stand work?

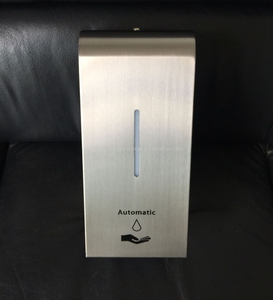

The auto soap dispenser station stand uses infrared sensing to automatically dispense soap. Automatic soap dispensers have built-in sensors, deceleration mechanisms and pistons. The sensor of the auto soap dispenser station stand has a lens and a pyroelectric tube. When the hand is in a position where it can receive the given soap, the sensor will sense the change of the human body's infrared rays and generate a signal, which is amplified by the electronic circuit. , compare, generate a switch signal, the switch signal drives the DC motor to drive the deceleration mechanism to rotate, pushes the piston through the connecting rod of the deceleration mechanism, and squeezes out the soap. The auto soap dispenser station stand generally senses only one liquid at a time.

How to install the auto soap dispenser station stand?

1. Select a suitable location, drill a bottom hole on the concrete wall with an impact drill, and install the rubber plug. Then fix the metal frame to the wall with screws.

2. Screw the auto soap dispenser station stand to the metal rack, then place the soap dispenser station on the metal rack. (Note: Please confirm the vertical distance between the soap dispenser nozzle and the bottom of the metal frame, so as not to dispense liquid)

3. Select a suitable position on the table, punch a round hole with an impact drill (25mm in diameter is suitable), then install the faucet and fasten it with a nut. When installing, pay attention to the distance between the induction soap dispenser and the faucet to prevent malfunctions; the center of the round hole is away from the edge of the sink to ensure that the soap dispenser residue can drip into the sink.

4. Install the clamp on the soap dispenser tube first, then connect the soap dispenser tube with the connector to the conduit on the faucet, and finally clamp it with the clamp.

5. Connect the gear pump motor wire, induction head cable and power wire of the auto soap dispenser station stand to the control box as shown in the figure. When connecting the sensor head cable, fasten it with a nut.

6. Check whether the power supply is plugged in, please insert the adapter plug into the power socket completely.

7. Please check whether the soap dispenser tube is fully connected and fastened.

8. Please check whether the motor wire of the wheel pump and the induction head cable are completely connected and fastened.

What are the precautions for the use of auto soap dispenser station stand?

1. The auto soap dispenser station stand generally senses one liquid at a time, 0.4ml-0.8ml for a kitchen, and the longest sensing distance is 3.5 inches (8.89cm);

2. Pay attention to check whether the auto soap dispenser station stand is inclined to prevent soap liquid from leaking out;

3. It is better to turn off the power when the auto soap dispenser station stand is not in use.
